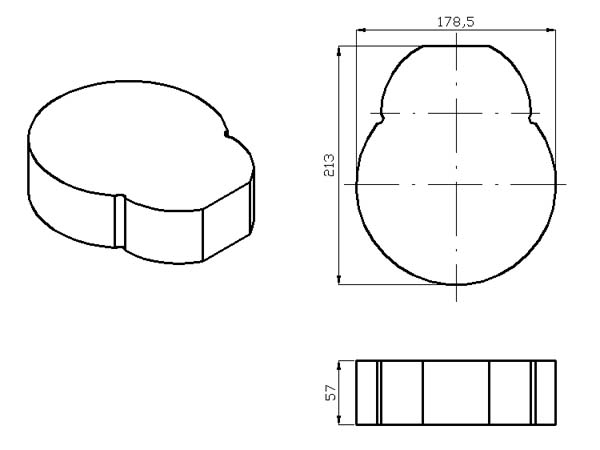

1. Snowman cut down
Brake pad crank press S.A. 800T U.S. Industries.
Dimensions: 213x178,5x57mm
other dimensions as per drawing
Products

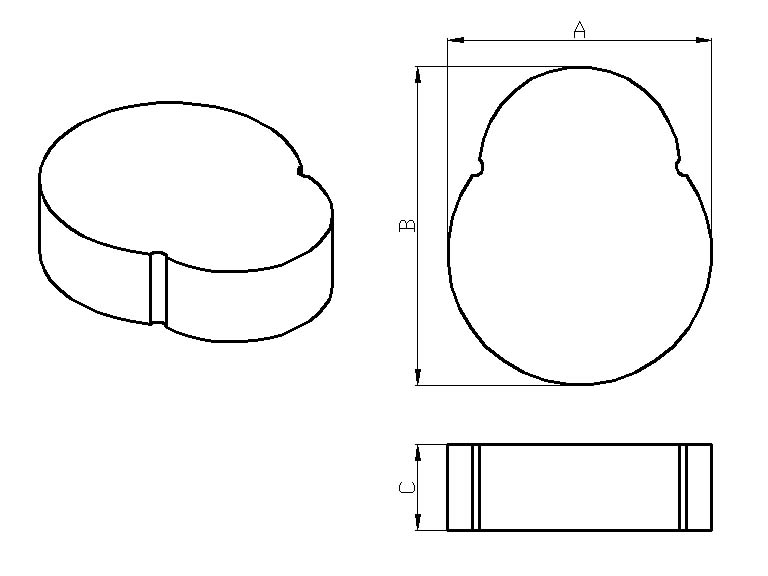

2. Snowman
Brake pad presses Schuller, Krupp, Linde
dimension AxBxC (mm)
a)50x70x50
b)70x58x50
c)70x85x42-46
d)169,5x204,5x55
e)other dimensions as per drawing

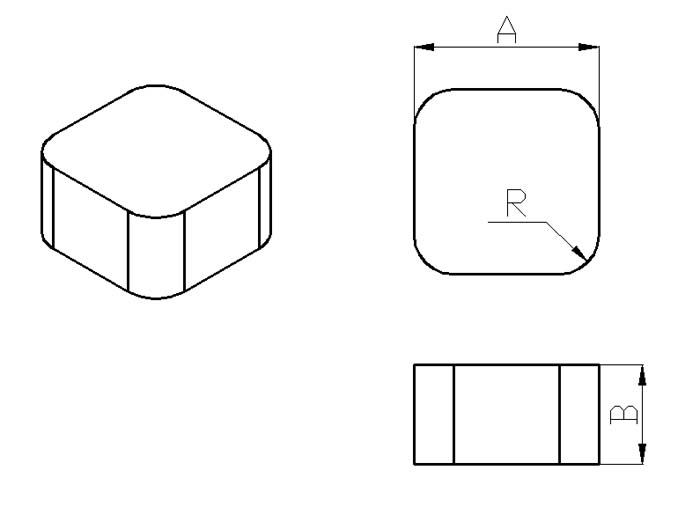

3. Square
a)press groovers N8NA-Schuller
b)puller Herbon
Dimension AxBxR (mm)
a)28x15xR6
a1)27x15xR3
b)30x18xR6
c)36x22xR6
a) d)36x23xR8
b) e)40x26xR5
c) f)40x80x30x(R3)
d) g)other dimensions as per drawing

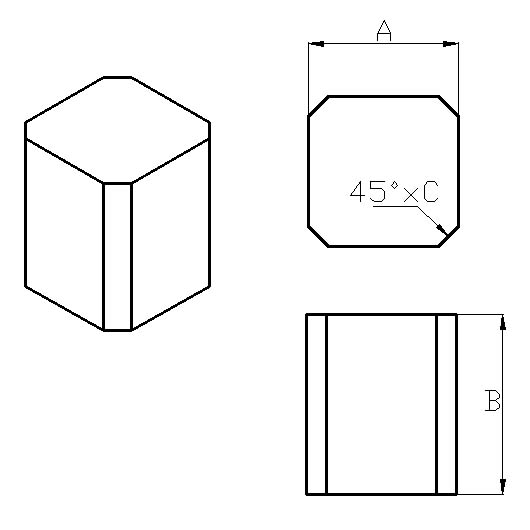

4. Square1
a)Brake pad presses eccentric
b)clutch shoe of the company's machine Riba
Dimension AxBxC (mm)
a)30x36x4
b)50x32x7,6
c)other dimensions as per drawing

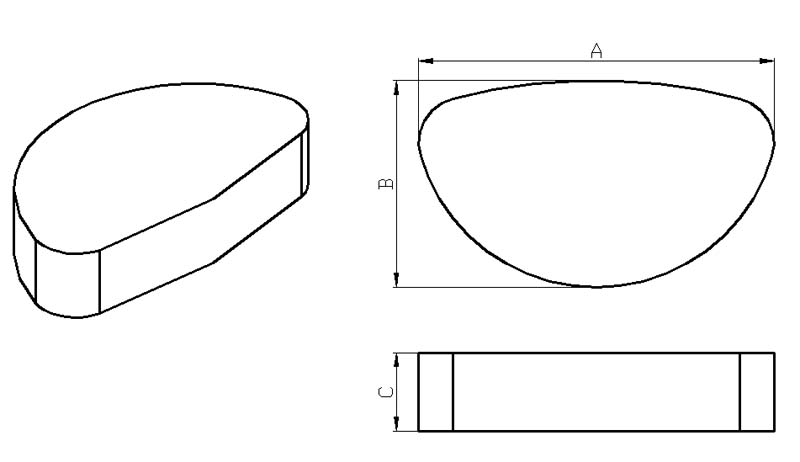

5. Kidney
a)press Ajax 500T, Schuller 150T
b)Brake pad press: PEE(II) 160T, PEE(I) 250T, PKNT 250T, guillotine shears ScPK(I) 315T
c)guillotine shears SCTP16
d)press: PKZZ 200T, PKZ 250T, PEE(I) 400T
e)presses: PKZZ 315T, PKZZ400T
f)presses: PKZ 400T, PKZZ 500T
g)guillotine shears ScPK 800T
h)press PKZV(IV) 500T
Dimension AxBxC (mm)
a)115x70x32
b)136,2x80,75x32
c)151x85x36
d)154,95x90x34
e)174,94x100x36
f)197x115x38-44
g)226,18x130x40
h)282x160x42-46
unusual Dimension:
132x75x28
134x80x32
154x89x36
i)other dimensions as per drawing

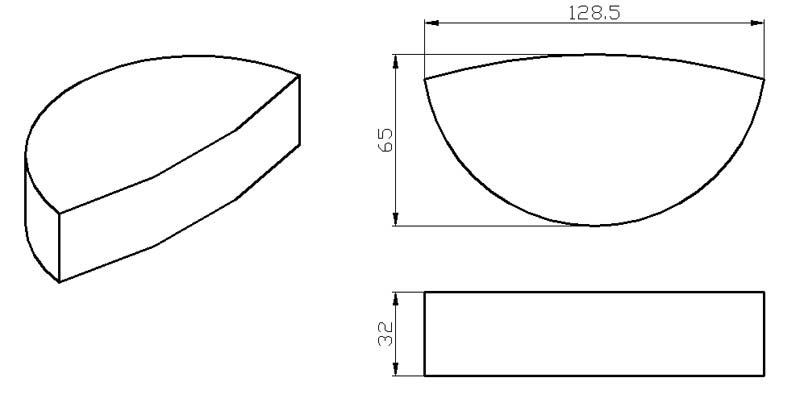

6. Kidney-NG8
Brake pad of guillotine shears NG8, NTH 3150/16
a)128,5x65x23mm
b)128,5x65x32mm
other dimensions as per drawing

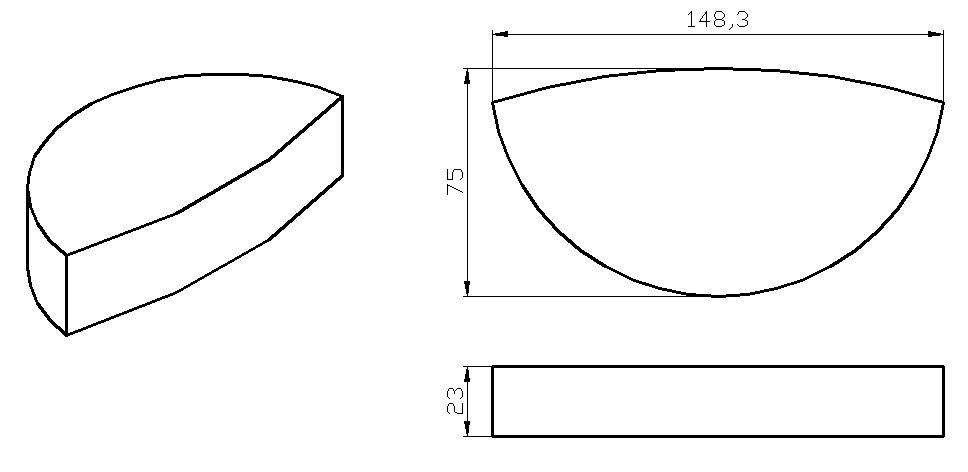

7. Kidney-NG10
Brake pad of guillotine shears
148,3x75x23mm
other dimensions as per drawing

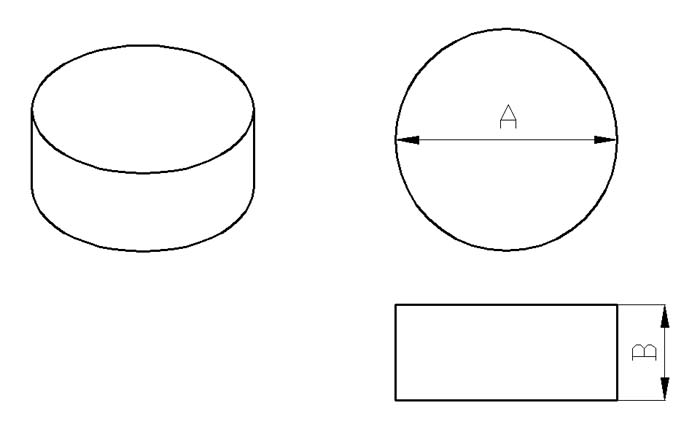

8. Round
a)Brake pad of the drawing machine drum
b)mechanical press PE63T
c)press PE63A
d)press K2132
e)table threading machine
Dimension AxB (mm)
a)Ø40x25
b)Ø58x25
c)Ø61x25
d)Ø80x29; 40
e)Ø110x20
f)other dimensions as per drawing

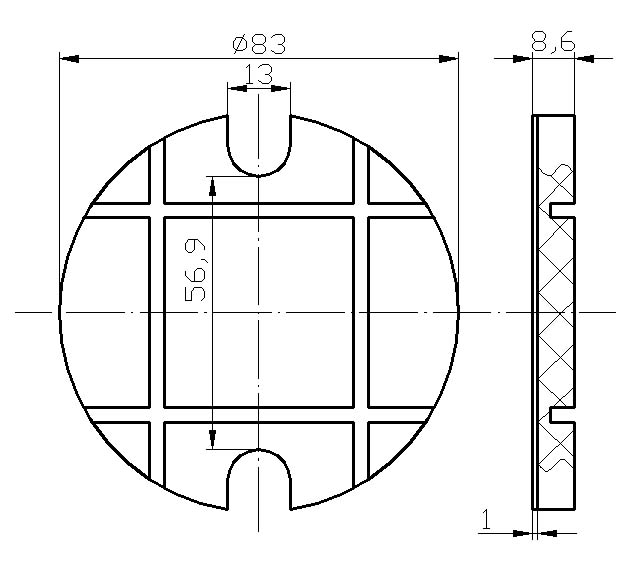

9. Round one-sided
Paper machine brake pad
a)Ø83x(1)8,6mm
b)Ø85x(1)10mm

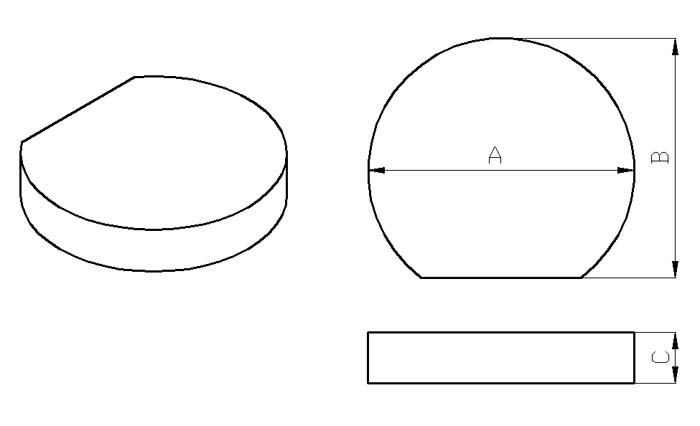

10. Round-cut
b)mechanical press K3534
d)mechanical press PMS
Dimension AxBxC (mm)
a)Ø80x72x35
b)Ø80x74x40
c)Ø80x75x30
d)Ø130x117x25
e)other dimensions as per drawing

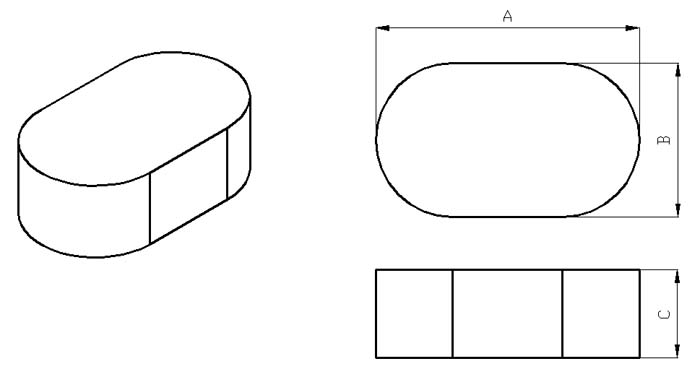

11. Oval
a)press Ajax 500T
b) eccentric press
c)press PE63A, ETT25
d)crank press 400T, KA5530, KB2536, K2132
a)press Ajax 500T
b) eccentric press
c)press PE63A, ETT25
d)crank press 400T, KA5530, KB2536, K2132
Dimension AxBxC (mm)
a)40x105x38,5
b)57x73x21; 55
c)60x75x25-28
d)60x110x40;45
e)70x120x30
f)80x130x40
g)90x110x30
h)40x104,8x39,9
unusual Dimension:
39,9x104,8x40
39,5x55x20;45
60x80x25-28
70x115x30
80x125x30
89x108x55
i)other dimensions as per drawing

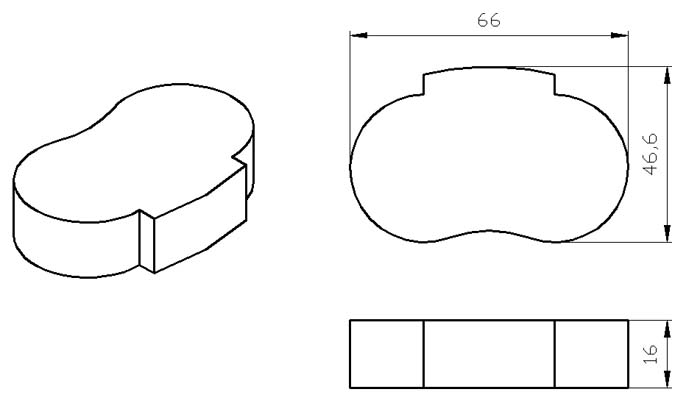

12. Oval1
Paper machine brake pad
66x46,6x16mm
other dimensions as per drawing

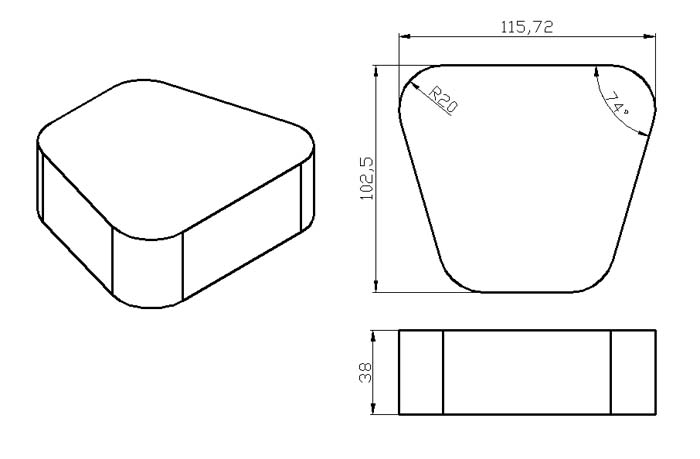

13. SCP600
Brake-clutch shoe of the forging line (forging machine) SCP 600T
115,72x102,5x36mm

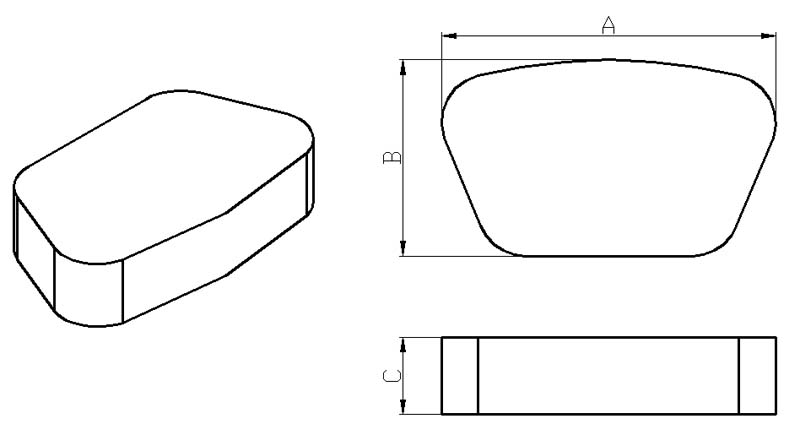

14. Trapezoidal
a)press PKZZ 250T
b)brake-clutch presses PEE 160T, clutch PEE 250T
c)brake presses PEE 250T
d)gilotyna Erfurt
e)press Erfurt PKZZ 315T
f)breaker ScPK 1000T
g)scissor 1600T
Dimension AxBxC (mm)
a)137x86x38
b)139x81,5x32
c)155x90x32
d)196x115x38
e)204x125x56
f)228x130x40
g)252x142,2x45
unusual Dimension:
134x80x36
138x81x32
165x96x36
other dimensions as per drawing

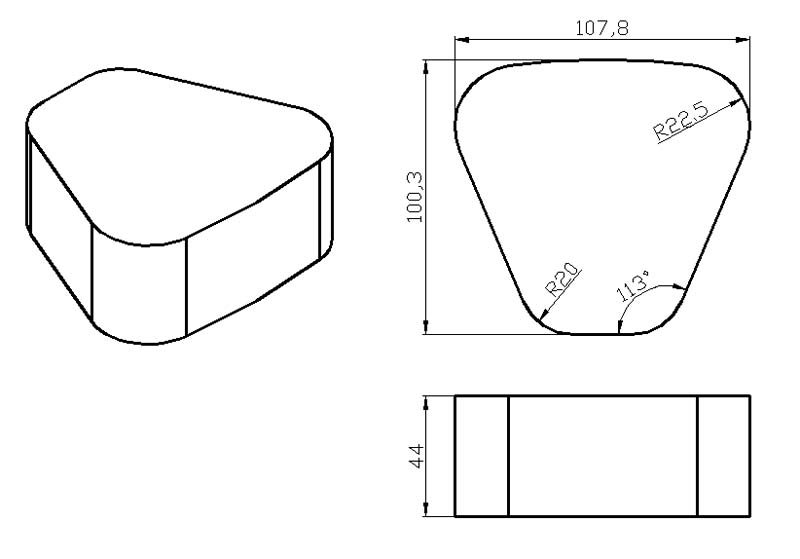

15. Trapezoidal1
Brake pad - clutch presses
107,8x100,3x44mm
other dimensions as per drawing

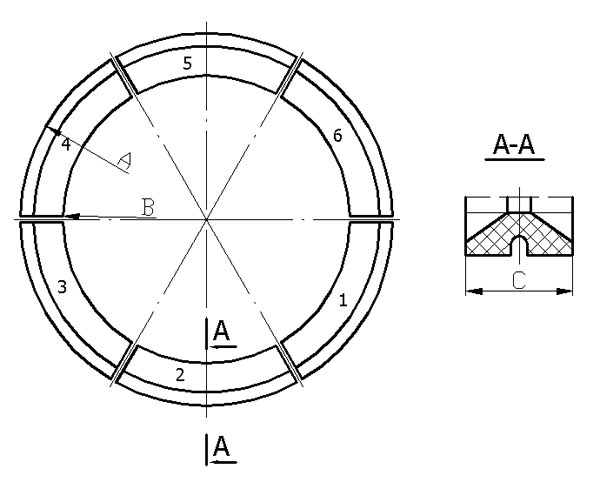

16. Conical
c)paper machine-clutch
d)paper machine-clutch
DimensionAxBxC (mm)
a)Ø90xØ70x28
b)Ø115xØ88,8x33
c)Ø143xØ113x38,2
d)Ø182xØ150x45
e)other dimensions as per drawing
f)preparation in the form of a ring for turning

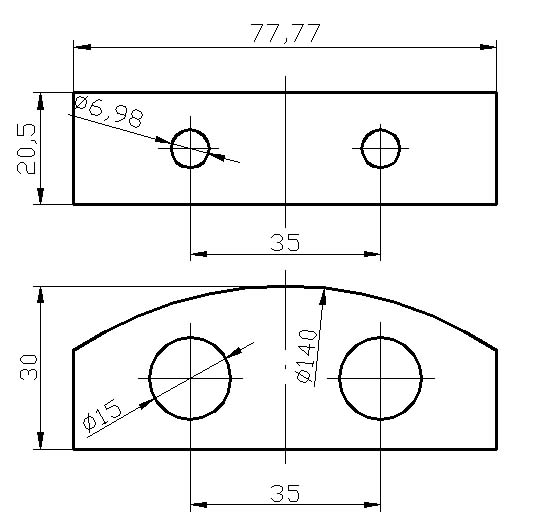

17. Centrifugal
Centrifugal clutch friction insert
Diameter b.Ø140mm
77,77x30x20,5mm
other dimensions as per drawing

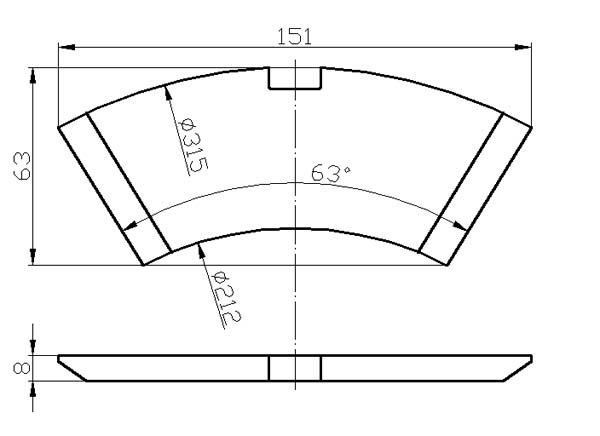

18. Reverse KM251
KM251 rope excavator clutch-brake disc friction insert
Substitutes: full rings
Disc regeneration (hot glued rings on press)
Ø315xØ212x1/6x8mm,
Ø315xØ212x8mm
Ø315xØ212x10mm
Ø315xØ212x12mm

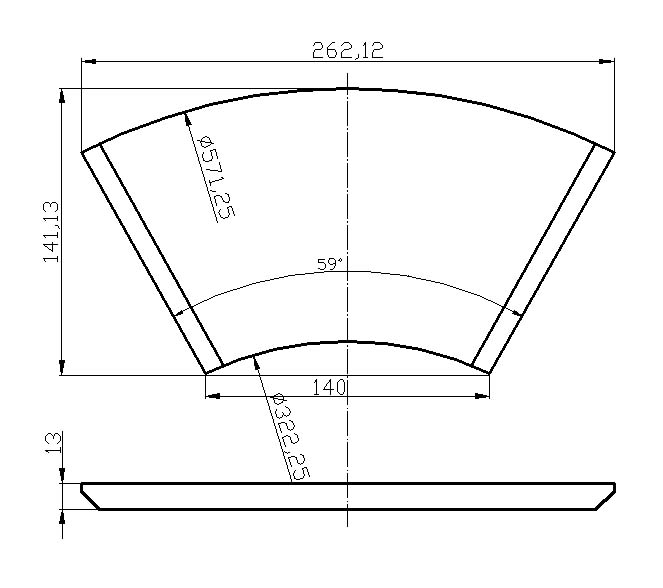

19. Reverse Unikop
Friction insert of the clutch-brake disc of the Unikop KU-1207 rope excavator
Ø571xØ322x1/6x13mm,
262x141x13mm

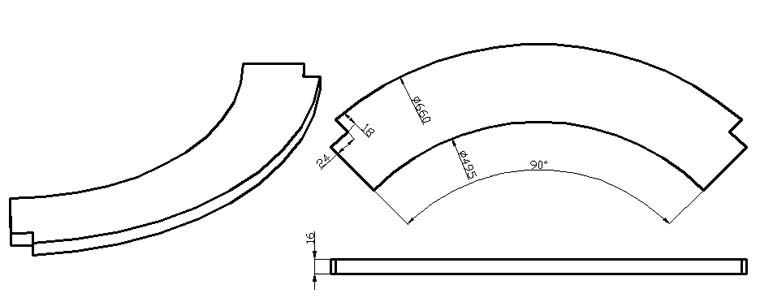

20. Reverse Bow
Brake friction insert eccentric presses 400T reinforced with 3mm thick aluminum
Ø660xØ495x1/4x(3)16mm
other dimensions as per drawing
